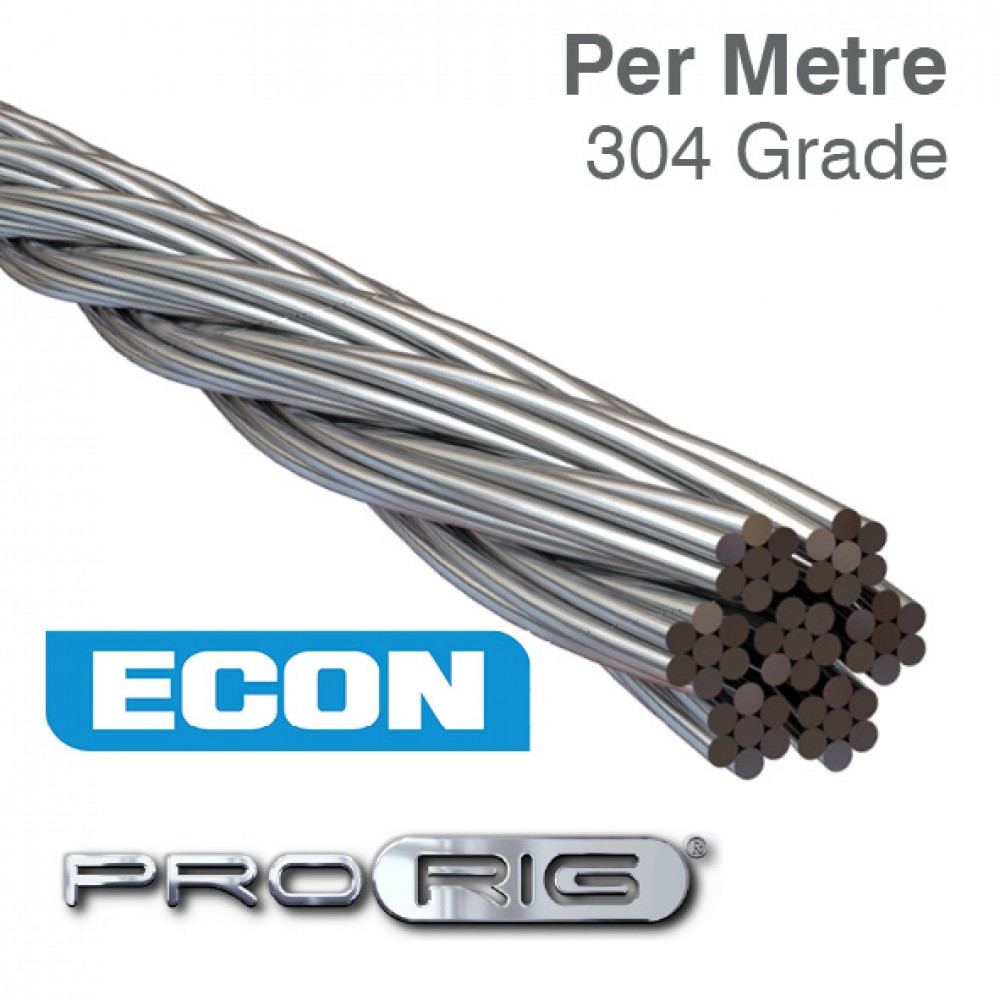

7x7 Wire Rope – Per Metre Below is the full list of available wire rope diameters supplied in 7x7 construction and available for purchase per metre. Wire Rope Brands ProRig Wire ProRig stainless steel wire rope is manufactured by a highly regarded Korean producer operating under strict quality control standards and using premium Korean and Japanese raw materials. The result is a consistently high-quality marine grade stainless steel wire rope trusted across architectural, marine and structural applications throughout Australia. Econ Wire Econ Wire offers a cost-effective stainless steel wire rope solution designed for budget-conscious projects. While positioned as an economical alternative to ProRig, Econ wire delivers reliable performance and represents excellent value within its price category. Wire Rope Specifications ProRig 316 & 304 Grade Stainless Steel Wire Rope – 7x7 CODE GRADE SIZE CONSTRUCTION BREAK STRAIN W01.277 316 1.2 7x7 100 W01.677 316 1.6 7x7 168 W02.077 316 2.0 7x7 258 W02.577 316 2.5 7x7 400 W0377 316 3.0 7x7 585 W03.277-304 304 3.2 7x7 750 W03.277 316 3.2 7x7 685 W0477-304 304 4.0 7x7 1139 W0477 316 4.0 7x7 1040 W0577-304 304 5.0 7x7 1788 W0577 316 5.0 7x7 1620 W0677 316 6.0 7x7 2330 W0877 316 8.0 7x7 3950 W1077 316 10.0 7x7 5517 W1277 316 12.0 7x7 7948 BS – Breaking Strain (kg) | All sizes in millimetres (mm) Econ 316 Grade Stainless Steel Wire Rope – 7x7 CODE GRADE SIZE CONSTRUCTION BREAK STRAIN WE03.077 316 3.0 7x7 548 WE03.277 316 3.2 7x7 626 WE0477 316 4.0 7x7 918 WE0477-304 304 4.0 7x7 918 BS – Breaking Strain (kg) | All sizes in millimetres (mm) Miami Stainless supplies ultra-high quality ProRig 316 marine grade stainless steel wire rope, manufactured by a single specialist producer with over 40 years of experience in stainless steel wire production. ProRig wire rope is available in 7x7, 7x19 and 1x19 constructions to suit a wide range of applications. The 1x19 construction is the least flexible option, featuring a smooth braided surface and bright finish, making it ideal for structural and architectural applications where minimal stretch and a clean aesthetic are required. Common applications include shade structures, shade sails and umbrellas, wire balustrading, architectural rigging, green walls and cable trellis systems. For best results, 1x19 wire rope ends should be swaged using a hydraulic swage press. ProRig wire rope is available in sizes ranging from 1.2mm to 16.0mm and can be purchased by the metre, in 305 metre rolls, or in selected sizes as 1000 metre rolls.
